SERVICES
STEP BY STEP TO THE PERFECT RESULT
Every single step in the jig construction process is carried out by our experts with the utmost care and precision to guarantee you the highest possible quality. We provide you with personal and detailed advice from the specification of your request through to validation, ensuring that all your questions are answered. Feel free to contact us!
Maximum data protection
Your data is in safe hands with us
35 years of experience
Resilient prototypes for your projects
Efficiency
Combination of versatility and material diversity
For every industry
From automotive to dentistry
Well advised
Reach your goal quickly with our experts
Maximum data protection
Your data is in safe hands with us
35 years of experience
Resilient prototypes for your projects
Efficiency
Combination of versatility and material diversity
For every industry
From automotive to dentistry
Well advised
Reach your goal quickly with our experts
Our gauge construction services
THE MEASURE OF QUALITY AND PRECISION.
From the initial consultation to the product specification and measurement – we have the best experts to support you along the way to the perfect solution for your needs.
CONSULTATION
The beginning of an optimum end result.
In the field of gauge construction, it is crucial to develop accurate and reliable measuring instruments to ensure the quality and precision of your production. We implement all requirements specified by you and your customers in the design and manufacture of your gauges.
Consultation – helpful, friendly and efficient.
DESIGN
The foundations for perfect implementation.
The gauge design process follows the applicable requirements specification, component drawing and the component data provided by the customer. We place great value on direct communication with our customers.

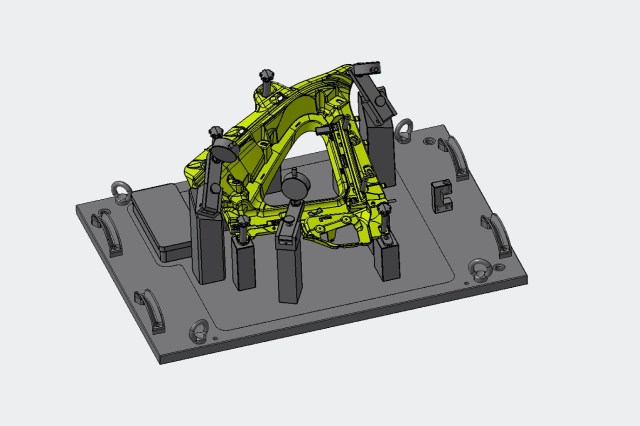

Creating a 3D concept in CATIA.
PRODUCTION
A focus on meticulous workmanship.
We manufacture all test equipment components in-house in our modern milling center. A particular advantage for our customers is our in-house expertise in manufacturing processes such as stereolithography, selective laser sintering, and 3D printing for weight reduction of individual components.

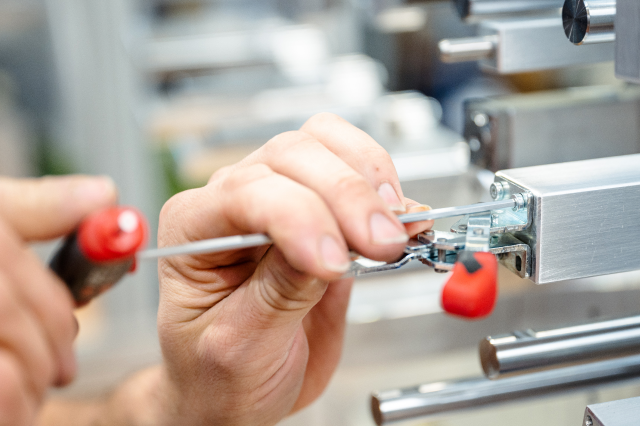

Assembling a vertical tensioner.
MEASUREMENT
The highest degree of measurement expertise.
Our company’s VDA, DIN EN ISO 9001:2015 and IATF 16949:2016 certifications guarantee our high quality standards. The very latest measurement and testing methods are used across all stages of product development to ensure excellent precision during production.

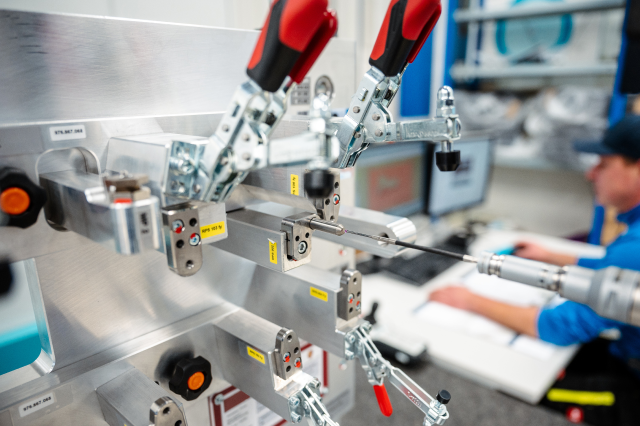

Calibrating an RPS system.
VALIDATION
For lasting quality.
To test the repeat accuracy when inserting the test component in the gauge, we perform validation – i.e. check the measurement equipment capability – in procedure 1 or 2 according to customer requirements. For every gauge, you’ll receive all the documentation you need to operate the gauge. If you still have questions after reading the documentation, our experts will be happy to help at any time.

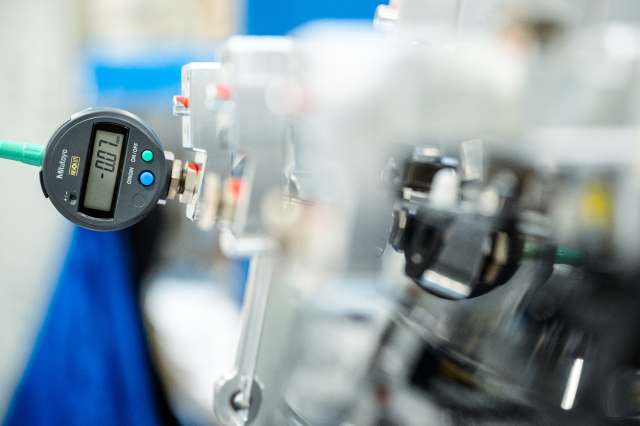

Measurement process with digital meter for measurement system analysis.
Our case studies
Automotive
A body with class: We produced the master model for the body of the cult Evetta light electric vehicle on a 1:1 scale – with perfect milling and the finest surface finishing. Find out how.
Industry
The socket for the forest: We developed the prototypes for a type of powerbank for Stihl, which was put through its paces by forestry workers. A truly powerful project.
Aerospace
"Jena, we have no problem": Jena-Optronik commissioned MODELLTECHNIK to produce a 1:1 model of the Gateway Docking Port, which is needed for sensor tests in space applications.
Design
Timeless and dignified: Working with Samosa and our expertise in 3D printing, MODELLTECHNIK creates beautiful templates and design samples for individually designed funeral urns.
Contact us
Whether you’ve got technical, commercial or specialist questions – we’re here to help.
